Technical specifications

Frequency
50Hz ±5% or 60Hz ±5%
Adjusting energy parameters
Independent phase control
Selectable target voltage
from 210V to 255V (L-N) / from 360V to 440V (L-L)
Output voltage accuracy
±0,5%
Admitted load variation
Up to 100%
Admitted load imbalance [%]
100
Cooling
Natural ventilation (from 35°C aided with fans)
Ambient temperature
-25/+45°C
Storage temperature
-25/+60°C
Max related humidity
<95% (non condensing)
Admitted overload
200% 2min.
Harmonic distorsion
None introduced
Colour
RAL 7035
Instrumentation
  • 10" touch panel (multilingual) remotely available via VNC
Installation
Indoor
Communication system
Ethernet / USB / MODBUS
Overvoltage protection
  • Class I input surge arrestors
  • Class II output surge arrestors
  • Optimal voltage return through supercapacitors in case of black-out

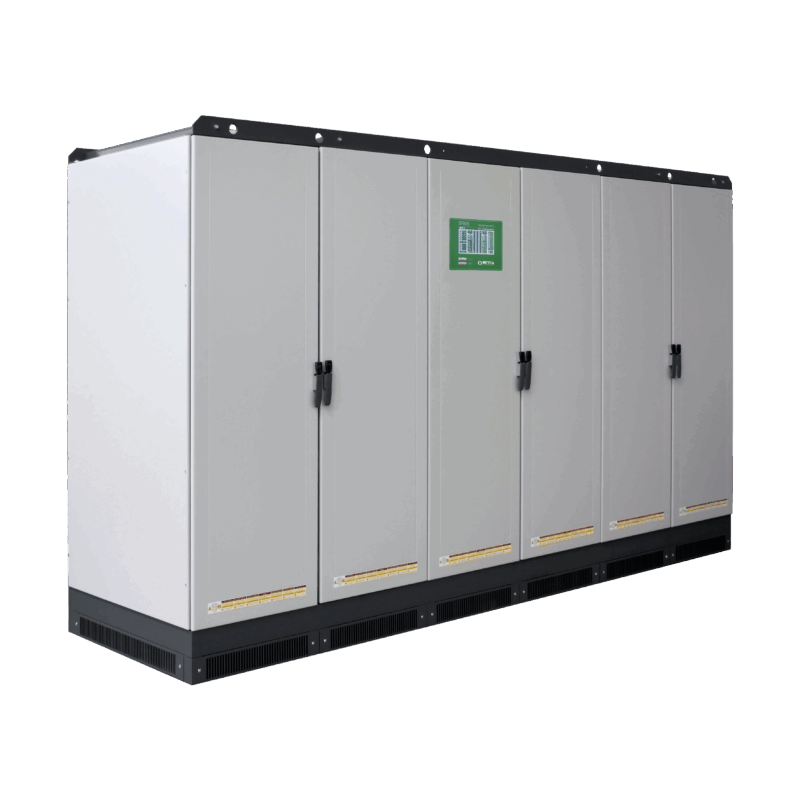

Sirius ±10%

Type
Rated power
Max input current
Rated output current
200-10
200
321
289
250-10
250
401
361
320-10
320
513
462
400-10
400
642
577
500-10
500
802
722
630-10
630
1010
909
800-10
800
1283
1155
1000-10
1000
1604
1443
1250-10
1250
2005
1804
1600-10
1600
2566
2312
2000-10
2000
3208
2887
2500-10
2500
4009
3609
3200-10
3200
5132
4619
4000-10
4000
6415
5774
5000-10
5000
8019
7217
6000-10
6000
9623
8661
Type
Rated power
Max input current
Rated output current
100-20
100
180
144
125-15
125
212
180
125-20
125
226
180
160-15
160
272
231
160-20
160
289
231
200-15
200
340
289
200-20
200
361
289
250-15
250
425
361
250-20
250
451
361
320-15
320
543
462
320-20
320
577
462
400-15
400
679
577
400-20
400
722
577
500-15
500
849
722
500-20
500
902
722
630-15
630
1070
909
630-20
630
1137
909
800-15
800
1359
1155
800-20
800
1443
1155
1000-15
1000
1698
1443
1000-20
1000
1804
1443
1250-15
1250
2123
1804
1250-20
1250
2255
1804
1600-15
1600
2717
2309
1600-20
1600
2887
2309
2000-15
2000
3396
2887
2000-20
2000
3609
2887
2500-15
2500
4245
3609
2500-20
2500
4511
3609
3200-15
3200
5434
4619
3200-20
3200
5774
4619
4000-15
4000
6793
5774
Type
Rated power
Max input current
Rated output current
60-30
60
124
87
80-25
80
154
115
80-30
80
165
115
100-25
100
192
144
100-30
100
206
144
125-25
125
241
180
125-30
125
258
180
160-25
160
308
231
160-30
160
330
231
200-25
200
385
289
200-30
200
412
289
250-25
250
481
361
250-30
250
516
361
320-25
320
616
462
320-30
320
660
462
400-25
400
770
577
400-30
400
825
577
500-25
500
962
722
500-30
500
1031
722
630-25
630
1212
909
630-30
630
1299
909
800-25
800
1540
1155
800-30
800
1650
1155
1000-25
1000
1925
1443
1000-30
1000
2062
1443
1250-25
1250
2406
1804
1250-30
1250
2578
1804
1600-25
1600
3079
2309
1600-30
1600
3299
2309
2000-25
2000
3849
2887
2000-30
2000
4124
2887
2500-25
2500
4811
3609
Type
Rated power
Max input current
Rated output current
80-15/35
80
178
115
100-15/35
100
222
144
125-15/35
125
278
180
160-15/35
160
355
231
200-15/35
200
444
289
250-15/35
250
555
361
320-15/35
320
711
462
400-15/35
400
888
577
500-15/35
500
1110
722
630-15/35
630
1399
909
800-15/35
800
1777
1155
1000-15/35
1000
2221
1443
1250-15/35
1250
2776
1804
1600-15/35
1600
3553
2309
2000-15/35
2000
4441
2887
2500-15/35
2500
5552
3609
Type
Rated power
Max input current
Rated output current
60-15/45
60
157
87
80-15/45
80
210
115
100-15/45
100
262
144
125-15/45
125
328
180
160-15/45
160
420
231
200-15/45
200
525
289
250-15/45
250
656
361
320-15/45
320
840
462
400-15/45
400
1050
577
500-15/45
500
1312
722
630-15/45
630
1653
909
800-15/45
800
2100
1155
1000-15/45
1000
2624
1443
1250-15/45
1250
3280
1804
1600-15/45
1600
4199
2309
2000-15/45
2000
5249
2887
