Enersolve is a solution that generates energy saving and provides energy quality

Energy saving

Energy savings are achieved through the principle of voltage optimisation, a technique used to regulate energy from the national grid in a controlled manner. By lowering the voltage to an optimum level, it is possible to reduce the level of power absorbed by the system with the same performance.

The need to optimise the voltage arises from the fact that the energy as supplied by the grid operator has a voltage that fluctuates around a value (e.g., 410 V). This value is higher than what is necessary for the system and its machines to function properly. However, the grid cannot dynamically adjust the voltage to the consumers, and therefore supplies the energy with cautiously high voltage values.

Our Enersolve technology finds a solution to this technological limitation: once connected to low voltage, it induces a compensating voltage on the three phases independently, thus continuously and dynamically reducing the voltage value with which the energy goes to the consumers.

Energy quality

Energy quality, as well as energy efficiency, is of crucial and growing importance due to the increasing use of electronics and therefore increasingly delicate loads. According to a recent study by Leonardo Energy, the costs associated with power quality issues for industrial companies amount to up to 4% of turnover.

Enersolve stabilises the voltage to the consumers, thus protecting and extending the life of the most delicate equipment. In addition, optional modules such as power factor correction and EMI filters can be added on request.

Filter results

7 Results

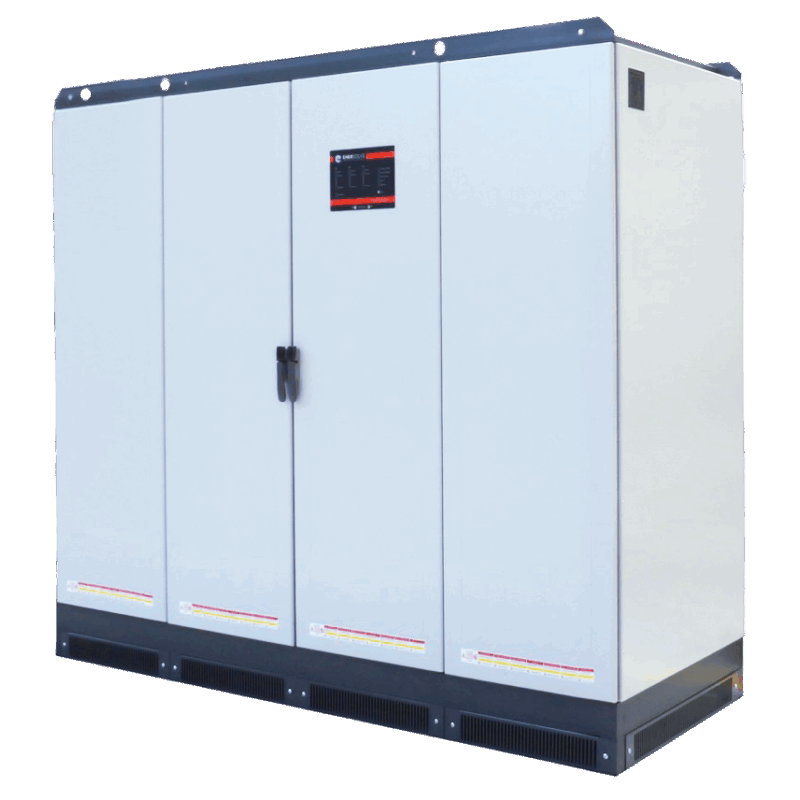

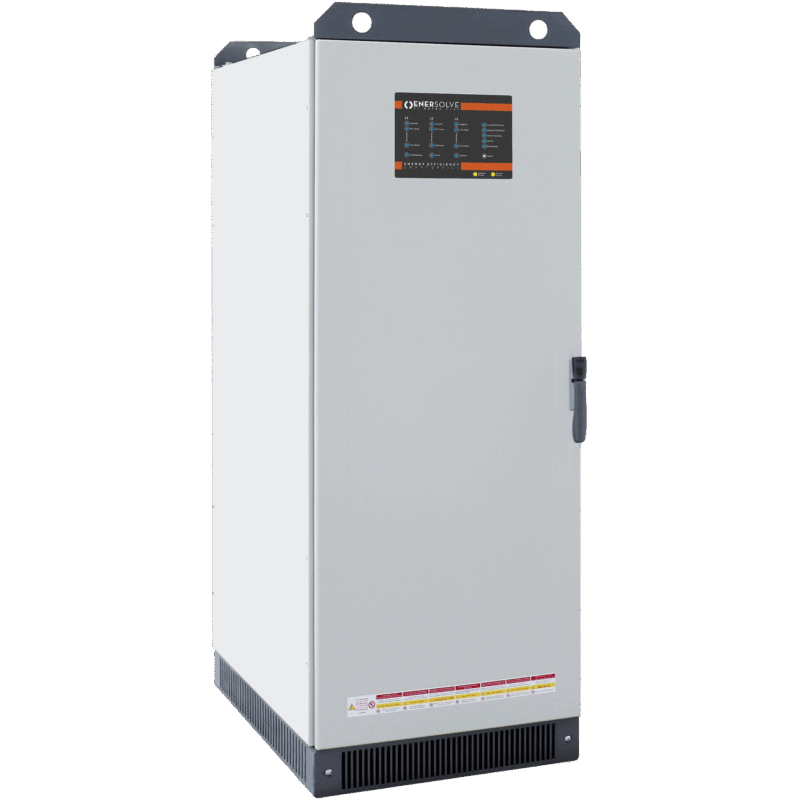

ESL-5
ENERSOLVE
ESL-5
Range
45-250kVA
Additional protections
  • Electronic automatic by-pass system
ESL-5N
ENERSOLVE
ESL-5N
Range
45-250kVA
Additional protections
  • Electronic automatic by-pass system
  • Integral exclusion by-pass system

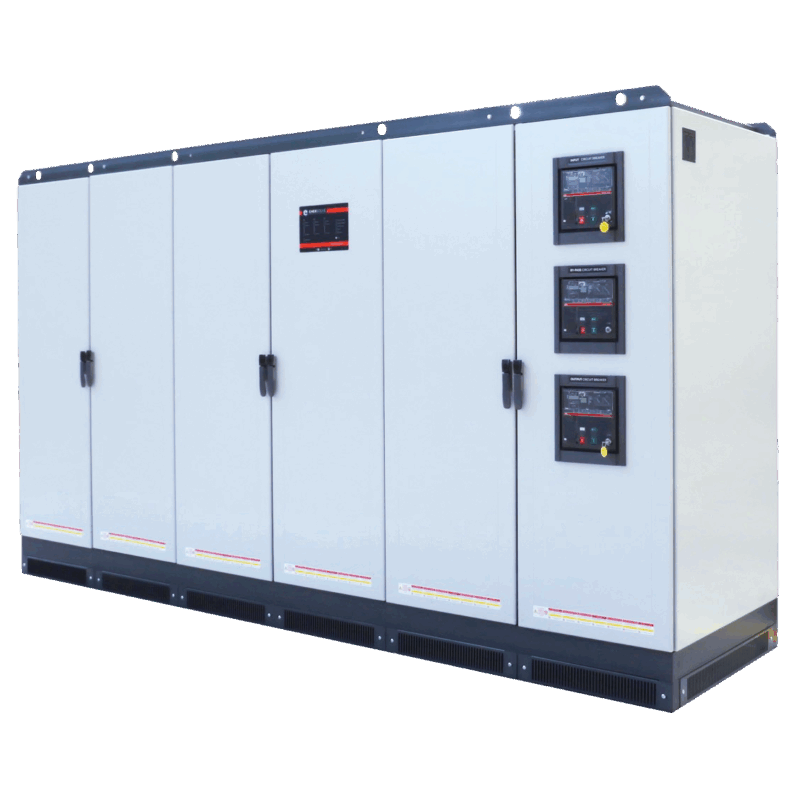

ESL-10
ENERSOLVE
ESL-10
Range
100-3200kVA
Additional protections
  • Electronic automatic by-pass system
  • Emergency manual by-pass system
ESL-10I
ENERSOLVE
ESL-10I
Range
100-3200kVA
Additional protections
  • Electronic automatic by-pass system
  • Emergency manual by-pass system
  • Input circuit breaker
ESL-10E
ENERSOLVE
ESL-10E
Range
100-3200kVA
Additional protections
  • Electronic automatic by-pass system
  • Emergency manual by-pass system
  • Integral exclusion by-pass system
ESL-10EI
ENERSOLVE
ESL-10EI
Range
100-3200kVA
Additional protections
  • Electronic automatic by-pass system
  • Emergency manual by-pass system
  • Integral exclusion by-pass system
  • Input circuit breaker
ESL-20
ENERSOLVE
ESL-20
Range
100-3200kVA
Additional protections
  • Electronic automatic by-pass system
  • Emergency manual by-pass system
